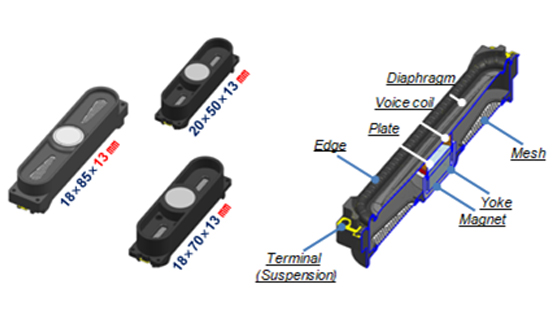

Slim Speaker
What is the advantage of Slim Speaker?
- Simple process : In just two soldering points
- Increased work efficiency : Optimized voice coil soldering
- Prevention of voice coil disconnection Thermal emission : Heat sink
- Temperature change : 180℃ --> Under 80℃
- The top and bottom of the heat sink are exposed in the frame
- Prevented deformation of parts due to high temperature
- Prevented demagnetization of neodymium magnet
- Stiffness reinforcement in the central part
- Minimization of vibration loss in the central part
- Prevention of mode vibration
- SPL reinforcement and planarization
Specification
Dimension | (L)85 x (W)18 x (T)13.1 mm | |
---|---|---|
Long term power | 10 W | |

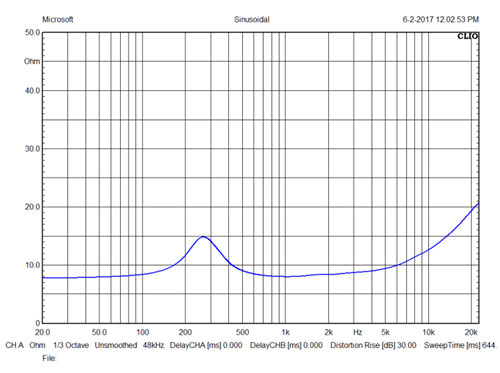

Nominal impedence | 8 ohm ± 15 % at 1.0 V, 1 kHz | |
D.C.R | 8 ohm ± 15 % | |
Resonance frequency (fo) | 280 Hz ± 20 % at 1.0 V | |

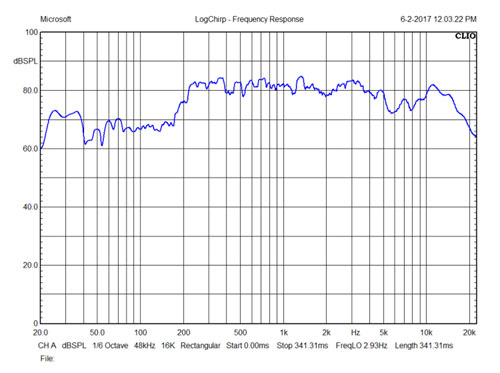

Averaged SPL | 80 dB ± 3 dB at 1.0 W, 1.0 m | at 500, 600, 800, 1000 |
Buzz & Rattle test | 7.74 Vrms | Input signal: Sine wave |
Distortion |
Less 6 % between 300 Hz and 1kHz Less 3 % above 1 kHz |
Input power: 1W |
Frequency range | fo - 20 kHz | Deviation: 10 dB max |
Slim Speaker
Dimension | (W)18 X (L)85 X (T)8 mm |
---|---|
Input | 10 W |
SPL | 80 dB |
F0 | 250 Hz |

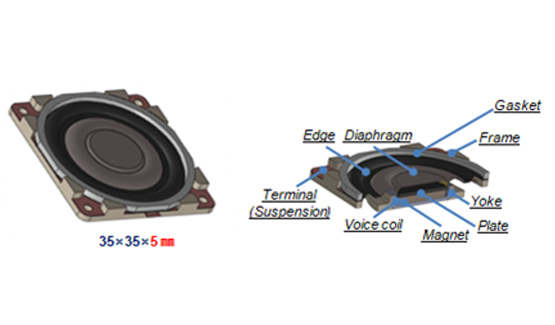

Dimension | (W)35 X (L)35 X (T)5 mm |
---|---|
Input | 5 W |
SPL | 80 dB |
F0 | 300 Hz |

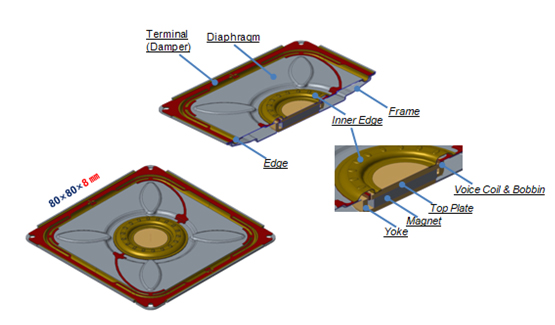

Slim Wooper
Dimension | (W)80 X (L)80 X (T)8 mm |
---|---|
Input | 10 W |
SPL | 80 dB |
F0 | 150 Hz |

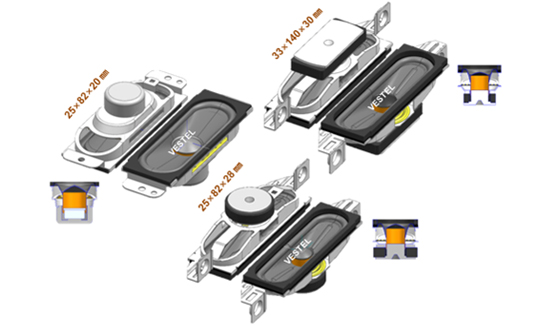

General Speaker
Dimension | Input | SPL | F0 |
---|---|---|---|
(W)25 X (L)82 X (T)20 mm | 5 W | 80 dB | 280 Hz |
(W)25 X (L)82 X (T)28 mm | 10 W | 81 dB | 240 Hz |
(W)33 X (L)140 X (T)30 | 10 W | 81 dB | 230 Hz |

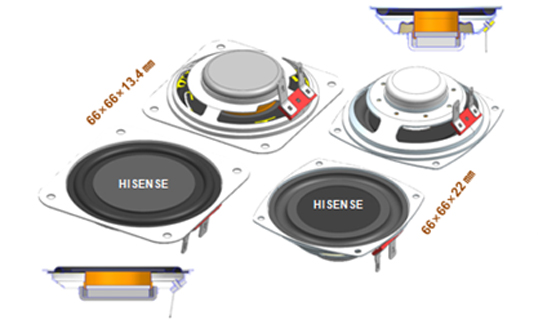

Dimension | Input | SPL | F0 |
---|---|---|---|
(W)66 X (L)66 X (T)13.4 mm | 10 W | 80 dB | 140 Hz |
(W)66 X (L)66 X (T)22 mm | 10 W | 80 dB | 140 Hz |
(W)205 X (L)205 X (T)80 | 10 W | 81 dB | 230 Hz |

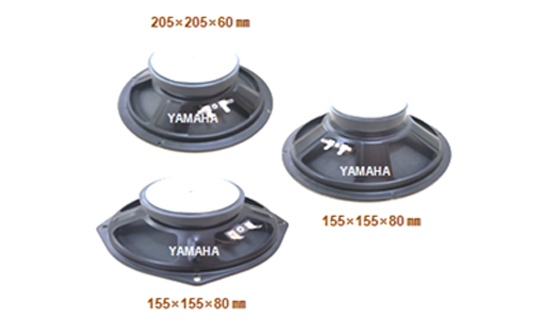

Dimension | Input | SPL | F0 |
---|---|---|---|
(W)155 X (L)155 X (T)60 mm | - W | 97.5 dB | 130 Hz |
(W)205 X (L)205 X (T)80 mm | - W | 97.5 dB | 130 Hz |
(W)205 X (L)205 X (T)80 | - W | 97.5 dB | 80 Hz |

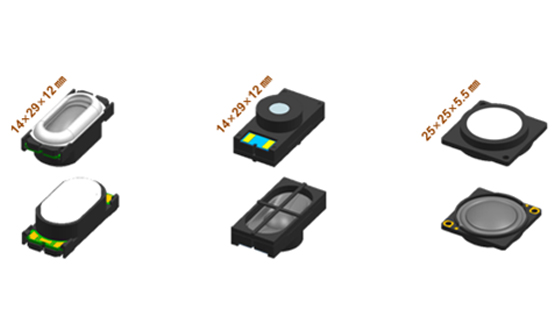

Tweeter
Dimension | Input | SPL | F0 |
---|---|---|---|
(W)14 X (L)29 X (T)12 mm | 10 W | 80 dB | 1250 Hz |
(W)14 X (L)29 X (T)12 mm | 10 W | 82 dB | 3500 Hz |
(W)25 X (L)25 X (T)5.5 | 10 W | 84 dB | 3000 Hz |

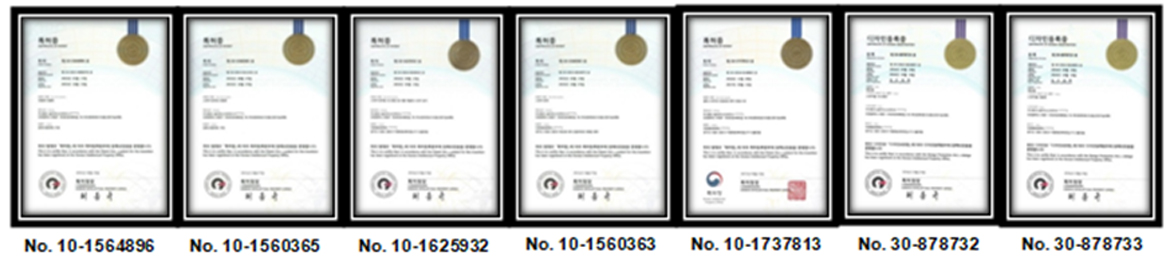

Global rights for the Source technology and Element technology
Title of invention | Application | Registration | Overseas application |
||
---|---|---|---|---|---|
No. | Date | No. | Date | ||
Speaker device | 10-2013-029520 | 2013.03.20 | |||
Bobbin for speaker device and speaker device usingsame |
10-2013-069380 | 2013.03.20 | |||
Diaphragm of speaker device | 10-2014-065504 | 2014.05.30 | |||
Magnetic circuit assembly for speaker device |
10-2014-066353 | 2014.05.30 | |||
Diaphragm for speaker device | 10-2014-154827 | 2014.11.08 | CHINA, GERMANY, USA | ||
Diaphragm assembly | 10-2015-008376 | 2015.01.17 | 1564896 | 2015.10.23 | CHINA, GERMANY, USA |
Speaker device | 10-25-15-024875 | 2015.02.23 | 1560363 | 2015.10.07 | CHINA |
Diaphragm for speaker device | 10-2015-111551 | 2015.08.07 | 1560365 | 2015.10.07 | |
Diaphragm assembly | 10-2015-146940 | 2015.10.21 | |||
Diaphragm assembly | 10-2016-005265 | 2016.01.15 | |||
A Suspension for speaker device and a speaker device using the same |
10-2016-049942 | 2016.04.25 | 1625932 | 2016.05.25 | CHINA |
Slim speaker | 10-2016-059992 | 2016.05.17 |
Title of invention | Application | Registration | Overseas application |
||
---|---|---|---|---|---|
No. | Date | No. | Date | ||
Slim spraker | 10-2016-097509 | 2016.07.29 | CHINA | ||
Connecting Structure Between Diaphragm and Edge for Slim Spraker |
10-2016-148802 | 2016.11.09 | 1737813 | 2017.05.15 | |
Slim Enclosure Assembly | 10-2017-064258 | 2017.05.24 | |||
Speaker Assembly and method of assembling the same | 10-2017-073133 | 2017.06.12 | |||
Diaphragm for speaker device | 30-2016-019855 | 2016.04.26 | 878732 | 2016.10.24 | |
Suspension for speaker device | 30-2016-019857 | 2016.04.26 | 878733 | 2016.10.24 |
